A directory of 4GL becomes a Maven project, and a Maven project becomes one deployable artifact.

The terminal stays, and it is worth being direct about why.

This is a replacement of Informix 4GL with Java, not a move to the web. The screens, the keystrokes and the flow the business uses every day come across unchanged, and for high-volume data entry that is a genuine advantage — an operator who knows the form is faster than any mouse.

But the deeper reason is structural. 4GL was designed around the character terminal : the screen is a fixed grid of rows and columns, the dialog owns the keyboard, and the program blocks while a field is edited. Those assumptions are in the language itself, not in the runtime beneath it. A 4GL program can be rendered in a browser, and it will still be a terminal — one drawn with web technology. That is an emulation, and it is a legitimate thing to buy, but it should be recognised for what it is rather than counted as modernisation.

So we do not compete on it. What changes here is everything behind the screen : the terminal becomes what it always should have been, an input and output device in front of an ordinary Java system, and the rules that took decades to accumulate are carried across rather than re-derived. The estate keeps the interface that works and loses its dependency on a specialist hiring market. When the surface itself is the problem, that is a different exercise and it is described further down this page.

Where we do not compete : emulating a terminal in a browser.

There is an established category of product that renders 4GL character screens in a browser. It works, it is a legitimate piece of engineering, and for some estates it buys time. We do not build one, and the reason is architectural rather than competitive.

What arrives in the browser is still the terminal : 80 columns, one modal dialog at a time, tab order instead of navigation, a function-key legend at the foot of the screen. The rendering technology changes ; the interaction model does not, because the interaction model is written into the 4GL statements themselves.

It also settles nothing underneath. The estate still runs a proprietary runtime, still depends on a narrowing skills market, still cannot expose a rule as an API without a screen-scrape, and has added a rendering layer to keep in step with browser releases. The bill arrives twice — once for the emulation, and again for the modernisation it deferred.

Three layers, and a migration only moves one of them.

An Informix 4GL application is three things stacked on each other, and they are usually discussed as though they were one. At the bottom is the platform that executes it. In the middle are the rules the business actually depends on. At the top is the way those rules are put in front of a person.

A migration moves the bottom layer and leaves the middle one exactly as it was. That is the whole of the exercise — and stating it that way makes the top layer's status obvious : it is not part of the migration at all. Keep the character terminal indefinitely, because the rules do not care what is in front of them. Put a browser front end over the screens that earn one, and leave the others alone. Give the rules no interface and call them as an API, from a queue or on a schedule. Or do all three at once over one set of business logic, which is simply what a normal platform allows.

The reason to be exact about this is commercial rather than architectural. A programme that bundles the platform change and the interface redesign into one project has to justify both at once, schedule both at once and carry the risk of both at once — and it is usually the interface work that makes the estimate unacceptable. Separating them lets the continuity problem be solved on its own timetable, with the interface question still entirely open afterwards, and answered from better ground.

It sequences naturally, too : removing the runtime licence and the hiring constraint can happen while the estate runs exactly as it does today, and the surface can be taken on afterwards with the rules already reachable from whatever you choose to put in front of them. At the far end the question stops being about 4GL at all — if screens, validations and report layouts are to be described once and materialised by a platform, that is a platform decision rather than a language one, and it starts at forward path.

The output has to survive review by someone who never wrote 4GL.

Every converter in this market emits Java that runs. The question that decides the next decade is whether a developer can open one of the files and understand it — because from cut-over onwards, that file is the specification of how the business works.

So legibility is treated as a compiler requirement rather than a courtesy. One module becomes one class ; one FUNCTION becomes one method, in source order, with its original name ; all three 4GL comment forms are carried through and re-emitted in place ; and parameter and return types are recovered by analysis instead of collapsing to Object. Nothing is merged, reordered or obfuscated, so a reviewer can hold the 4GL beside the Java and follow it line for line.

Proven against the compiler it replaces.

The question every migration turns on is whether the translation is faithful, so it is settled by measurement rather than by argument. Translated programs run against a real Informix 7.51 installation alongside the original 4GL binaries, on the same data, and the output is compared byte for byte — arithmetic, dates, NULL handling, string operations, cursors, arrays and report output alike. That is a differential test against the reference implementation, it runs on every build, and a difference is a defect.

The compiler emits Java that is meant to be read. It is not an obfuscated intermediate form, and not a runtime that interprets your 4GL behind a licence : it is code your team can review today and adopt as the source whenever they decide to — this year, in three years, or never. That option is the point of the exercise, and it is why the generated code has to be legible.

Make the application safe to change, before you change the application.

Informix 4GL was designed in the mid-1980s and matured through the 1990s, and it was very good at what it was asked to do. What did not exist then is the practice that has since become ordinary : a suite of automated tests, run on every change, by a machine. Systems written before that was normal were verified the way everything was verified then — by a person, at a terminal, working through a checklist.

What that costs an organisation today is not the testing. It is the caution. When the only way to know whether a change broke something is to have somebody exercise the screens, change becomes expensive, so less of it is attempted ; changes are batched into large releases, which makes each one riskier and the next one later ; and the people who can judge whether a change is safe are the few who remember how the system behaves. That is the arithmetic of testing by hand, not a failure of the team.

Once the application is Java, the whole of that changes at once — with tools the organisation already runs, on infrastructure it already has, and none of it built by us.

Why Maven, when the compiler already translates on its own.

For a single program the compiler is enough, and it works the way a 4GL compiler has always worked : point it at a module with a MAIN, it links what that module needs and produces classes you can run. Nothing about the migration requires a build tool, and for a utility or a nightly report that is the whole story.

An application is a different object. It has an entry point, a set of modules that must be linked together, forms that have to travel with it, a runtime it depends on, a version, and somewhere to be deployed from. Those are exactly the concerns a Maven project exists to hold — so the project is not ceremony added on top of the compiler, it is the thing that turns translated modules into an application.

The plugin runs the translator as a build step, so the 4GL under src/main/4gl stays the single source while the programme is running. A developer edits 4GL, presses build, and the Java in target/generated-sources/j4gl is regenerated — registered as a source root, so it is navigable, and breakpoints in it are live.

The packaged artifact is one versioned jar : the translated program, the runtime that gives 4GL its semantics, and the compiled forms. It deploys the way every other Java artifact in the estate deploys — a repository, a pipeline, a container image, a version number that can be rolled back. For an organisation whose 4GL currently ships as binaries built on one machine by one person, that alone changes the operational risk profile.

And if you want it, there is a defined moment at which the 4GL can stop being the source : copy the generated Java into src/main/java, remove the plugin from the POM, and the project becomes an ordinary Java project maintained by hand. That step is available from the first day and obligatory on none of them — an estate can take it in year one, for a single module, or never.

The months between the decision and the cut-over.

No estate of consequence moves in a weekend. Between the day a migration is approved and the day the 4GL is switched off, there is a long middle in which both languages are real : the 4GL still runs the business and still gets changed, while the Java is reviewed, tested and learned. That period is measured in quarters, not sprints.

Most conversion tooling has nothing to say about it. It translates once and hands over a folder, which is exactly right on the last day and exactly wrong on every day before it — because the moment someone fixes a bug in the 4GL, the Java is stale and no build will tell you so.

The project is a Maven project. The 4GL is its source.

Be clear about what does not change : your .4gl and .per files remain the source. The team edits 4GL, the build translates it, and the Java is what runs. Nobody is asked to learn a new language in order to get the licence and the hiring constraint off the estate.

What changes is the build. The sources sit inside an ordinary Maven project, and mvn compile is the whole workflow : every build re-runs the translator over whatever changed, compiles the result, and produces a single runnable jar with its dependencies inside it. Run it with java -jar and it lists the programs it contains ; name one and it runs.

That is what makes this a migration rather than a translation. A 4GL estate that was a directory of binaries and a shell script becomes a versioned artifact, built by the pipeline the organisation already runs, promoted through the environments everything else is promoted through, and rolled back by replacing one file. The dependency management, the test and coverage tooling, the static analysis and the continuous integration all arrive with it, because they come with Maven rather than from us.

And because the project is an ordinary Maven project, an IDE imports it and indexes the generated Java with no further setup — which is where the debugger below comes in.

For a single program, there is the direct command.

Not everything needs a project. j4glc compiles and runs one program, or a named set of them, straight from the command line — the fastest way to see what a particular module translates to, to check a change to one screen, or to run a batch program on its own during development.

It is the same translator reading the same catalogue and producing the same Java as the build does, so nothing learned from it has to be re-checked later. It is a tool for a developer at a terminal ; the Maven project is how the application is built and shipped.

Whether to stop writing 4GL is a separate question, and “never” is an answer.

Nothing about the build forces that decision or delays it. Whenever the team is ready — on their own evidence, having read and debugged the output for months — the generated Java can be adopted as the source and the translation step taken out. Equally, it need not be.

4GL is a smaller and more direct language for this work : a DECIMAL that behaves the way an accountant expects without a library, cursors and reports in the language rather than bolted onto it, a despatch rule in ten lines that Java needs a page for. A team whose domain experts write it fluently has a good reason to go on writing it, and a build that translates on every compile lets them.

What the migration ends is the runtime licence, the toolchain and the dependency on a language the market no longer teaches — on the first day, whatever you later decide about the language itself. Everything that runs is Java on a JDK from that day forward.

And the two mix on purpose. The generated Java is ordinary Java in an ordinary project, so new capability can be added in Java beside the rules — a REST endpoint over an existing rule, a scheduled job, a message consumer, a library the 4GL never had — while the rules stay in 4GL and keep being edited there. That is a working arrangement, not a transitional one, and for many estates it is the right permanent answer.

Why the Maven path is the one that builds confidence.

Both paths produce the same Java, so the argument for the Maven one is not the output — it is that a team cannot take ownership of code it has only ever read, and the Maven path keeps that code present, current and indexed at the moment a developer is curious. Reviewing twenty thousand lines of generated Java in a pull request teaches almost nothing ; setting a breakpoint inside a credit-limit check, watching a MONEY value carry its scale through an arithmetic expression, and stepping into the runtime call that reproduces a 4GL comparison teaches the whole design in an afternoon.

That is only possible if the generated Java is present, current and indexed by the development environment at the moment the developer is curious. If regenerating it is a separate command somebody has to remember, it will be out of date exactly when it matters.

The 4GL is edited every day of the migration, so the editor has to know it.

A migration of any size is not a stop-the-world event. The business keeps asking for changes, and for as long as the migration lasts those changes are made in 4GL — by the same people, in whatever editor they already have open. The distribution therefore carries syntax colouring for .4gl files : a TextMate grammar that serves Eclipse and Visual Studio Code, and a file type definition for IntelliJ IDEA and the other JetBrains IDEs.

Both are generated from the compiler’s own lexer rather than written by hand, which is the part that matters. A hand-maintained keyword list is a second, informal statement of what the language is : it starts slightly wrong and drifts with every change, and its errors are invisible, because a word that should be coloured and is not looks merely like a word. Generating them makes the words an editor colours exactly the words the compiler accepts, and the build fails when the grammar gains a keyword the editor files do not know.

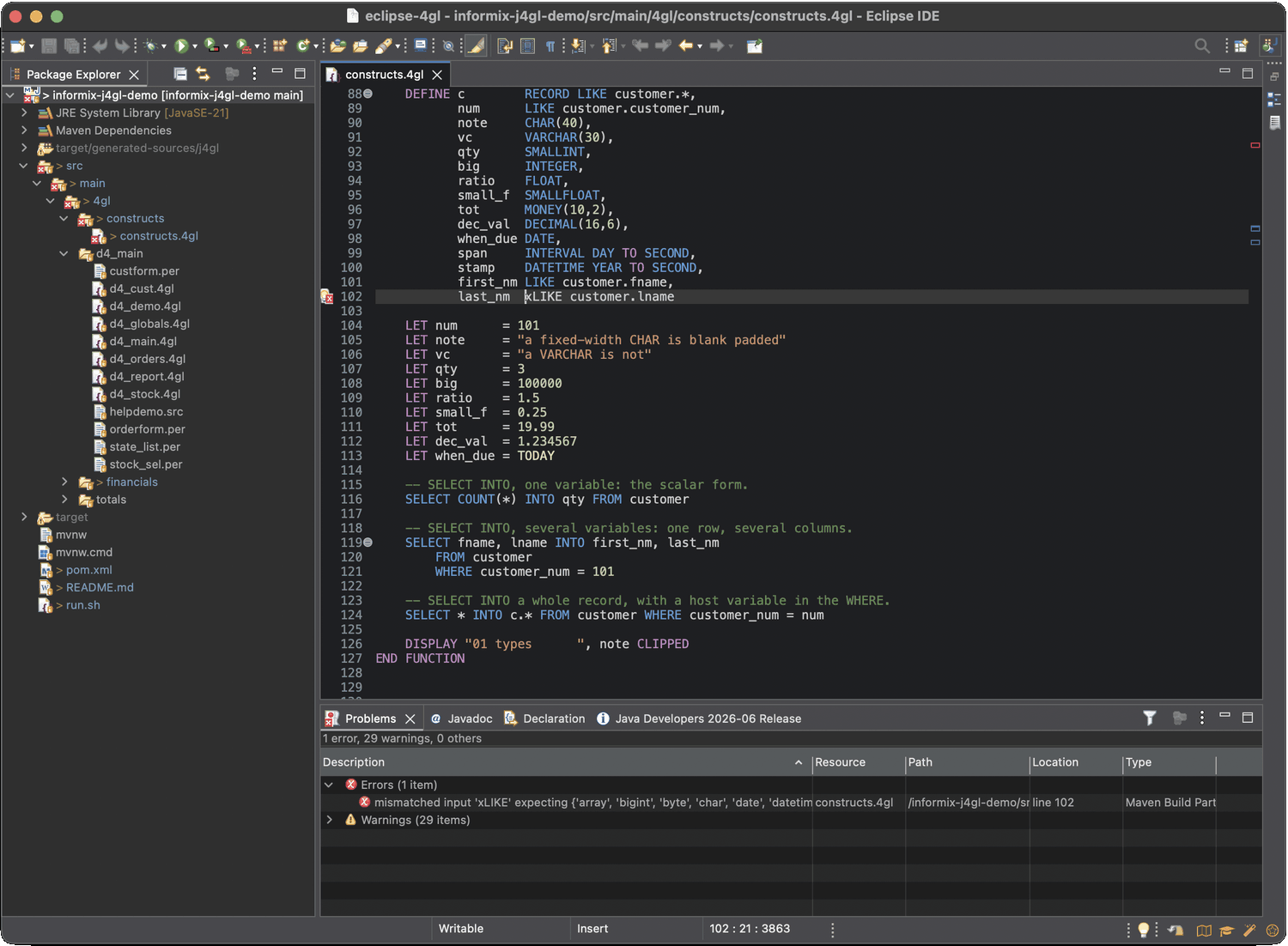

A syntax error is reported the way a Java syntax error is : as a marker on the statement, in the file that contains it, counted alongside everything else the project has to say about itself. Not a stack trace against the build file with no line to click.

What the build does when nothing has changed.

The translator runs on every build, before the Java compiler, and the first thing it does is decide whether to translate at all. That decision is the difference between a development environment that responds to a saved file and one that appears to hang on it, so it is worth being precise about. Four questions, in order — the first that answers “yes, work is needed” ends the sequence.

The unit of decision is the source tree, not the individual program.

When the answer is that work is needed, every program under that source directory is translated again — not only the one that changed. This is a property of the language rather than a shortcut : a 4GL program is linked from its call graph, and a module reached through GLOBALS can belong to several programs at once, so working out which programs a single edited module belongs to means parsing all of them. The analysis that would avoid the work costs the same as the work. What the build reliably avoids is translating when nothing has changed, which is the case that dominates a working day.

The catalogue is the other cost in that loop, because translation resolves declarations made against table columns. It is read once per database per build rather than once per program : a source tree of forty programs naming one database opens one connection and reads one catalogue. Database names are compared without regard to case, because Informix does not distinguish them. And a build that decides no translation is needed does not read the catalogue at all — which is what makes a no-op build independent of whether the server is reachable.

One module per subsystem, decided the day the project is scaffolded.

The build translates whatever source tree has changed, and it translates all of it : a module reached through GLOBALS can belong to several programs at once, so establishing which programs one edited module belongs to costs the same as translating them. On an estate of half a million lines and up, that arithmetic decides how the project is laid out.

So a large estate is scaffolded as several Maven modules — one per subsystem, following the boundaries the business already recognises rather than the directory structure that accumulated. Each module carries its own 4GL and translates independently, so an edit in despatch retranslates despatch and nothing else. A single source tree holding three million lines retranslates three million lines every time somebody saves a file.

It is a scaffold-time decision and an uncomfortable one to retrofit, which is why it is the first thing we work through in the setup session rather than something discovered when the build gets slow. The same partition is what later lets waves go into production independently, so it pays twice.

What an IDE gives you the moment the project is imported.

The generated folder is registered with the build as a source root, so IntelliJ IDEA, Eclipse and Visual Studio Code index it on import with no further configuration. From there the developer has the full Java toolchain — not a viewer, not a trace file, but the debugger the rest of the industry uses every day.

Changing your mind is a decision, not a project.

If and when the team wants it — and that decision is theirs, taken on their own evidence — the generated Java is adopted as the project’s source and the translation step is removed from the build. Nothing has to be rewritten or re-approved to make that happen ; the code that has been running in production is the code that stays, and the jar the build produces on the day after is the jar it produced on the day before.

That is what separates a source migration from converting to another proprietary language. The translator is not a dependency you acquire. It is a scaffold you take down when it has done its work, leaving Java your team already knows how to debug — because they have been debugging it for months.

Java is a modernisation route, not the option that leaves things as they are.

This path is sometimes read as the conservative one — the estate becomes Java and otherwise stands still. That is true of the first day, deliberately, because nobody should have to fund a user-interface project in order to fund a language migration. It is not true of the second year.

What a JVM application can do that a 4GL program could not is the whole reason the language question mattered. The same rules can be exposed as an HTTP API, published to a queue, called from a scheduled job, driven by a web or mobile front end, packaged into a container, and observed by whatever the estate already uses. Integration stops being a bespoke extract written for each request and becomes ordinary work that any Java developer can pick up. A modern interface, when the business wants one, is then a project in front of a codebase that can already answer it — not a rewrite of the rules.

And none of it has to happen at once, or at all. The 4GL can go on being the source while the build translates it ; a single module can be taken over in Java while the rest stays as it is ; new work can be written in Java against rules still authored in 4GL. The routes mix, and the mixture is a normal state rather than an unfinished migration.

The screens become automatable, which they never were.

A 4GL application assumes a human : MENU waits for a keystroke, INPUT waits for a field, and nothing proceeds without a terminal. That assumption is why most estates have no automated tests of their screen programs, and no way to load data through the paths a clerk uses.

Every translated application accepts keystrokes as an argument and can run with no terminal at all. The keys are queued into the same input path a keyboard feeds, so the dialog runs exactly as it runs for a person — every field validation fires, every lookup fills, every rule that refuses a despatch still refuses it.

That turns two problems into ordinary work. Data entry can be automated through the rules rather than around them : a bulk import, an acquisition's customer file or a nightly feed goes in the way a clerk would enter it, instead of through INSERT statements that bypass every check living in the screen. And screen programs can be put under test, in a build, for most estates the first time that has been possible — it is the same mechanism the migration itself is verified with.

It is a Java API as well as a command line, so a migrated screen runs under an ordinary JUnit test : an in-memory screen, keystrokes queued ahead of the call, assertions on what appeared or on what reached the database. The test is ordinary Java — it runs in the build the organisation already has and can be written by a developer who has never read 4GL, which is usually the real constraint. Teams often start there, writing characterisation tests against the original behaviour and holding the translation to them.

The full treatment, including where it is the wrong tool, is in the paper.

Why a delivery lead should care more about this than about the translation.

The translation is the part that looks like the work. This is the part that changes what the organisation can do afterwards, and it is worth putting in the terms a steering committee weighs.

An estate with no automated tests is not badly run. It is a system built before automated testing was ordinary practice, verified the way everything was verified then. But the consequence today is a tax paid every quarter : changes are expensive because verifying them is manual, so fewer are attempted ; they are batched into large releases, which makes each release riskier and the next one later ; and the judgement of whether a change is safe sits with the few people who remember how the system behaves, so every departure takes some of it away.

Putting the screens under test moves that judgement from people to a build. A change is checked in minutes, on every commit, against the behaviour the business actually relies on. Releases get smaller and more frequent because each one is verified. A characterisation test is a written statement of what the system does in a form that fails when it stops being true, which is the documentation these estates have always been missing and the only kind that cannot go stale quietly. And because the tests are ordinary Java, a new developer can change the application with evidence rather than folklore — which is what makes them productive on the legacy system in their first month rather than their first year.

In regulated sectors there is usually a further argument, and it is often the one that carries : an automated suite produces evidence per release that the rules behaved as specified, generated by the build rather than attested by a person.

None of it requires the 4GL to be abandoned. Tests written this way exercise the rules wherever they live — in 4GL the build translates, in Java the team has adopted, or both at once — so the discipline can be established first and the language decisions taken later, on their own merits. For most estates that is the right order : make the system safe to change, then decide what to change.

The paper.

The engineering behind the compiler is written up in full — the constraint that shapes every design decision, the pipeline and its intermediate representation, how an untyped 4GL signature becomes a typed Java method, why decimal arithmetic is what a naive translation loses quietly, a verbatim credit-limit rule and its translation, the terminal surface reproduced on the JVM, what the build produces, and how fidelity is proven against the original binaries rather than asserted.

4GL to Java — the compiler, in full (PDF) — written for the architect who has to decide what happens to the estate.
